Product Details:
|
| Usage: | Tension Material Tension Strength Tester | Max. Test Load: | 600KN |
|---|---|---|---|
| Load Range: | 6KN-600KN | Max. Ram Stroke: | 250mm |
| Warranty Period: | 1 Year | Max. Tensile Space: | 800mm(including Piston Stroke) |
| Display: | Computer Control And Display | Clamping Mode: | Hydraulically |
| Dimensions Of Load Frame: | 990×600×2435mm | All Weight: | 2800kg |
| High Light: | hydraulic universal testing machine,hydraulic compression testing machine |
||

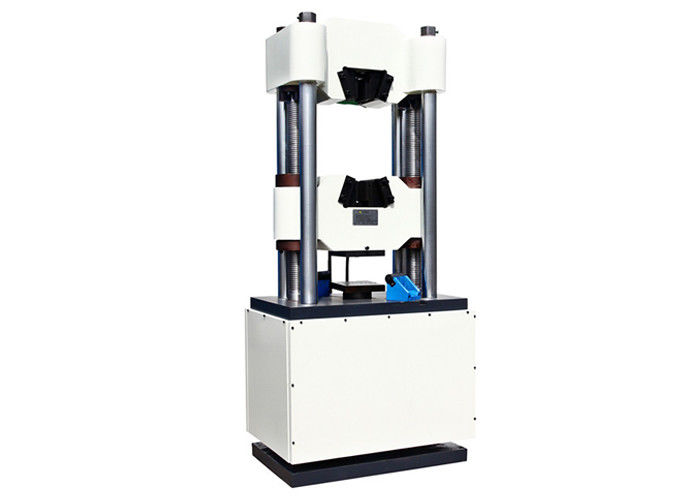

60T Metal Tensile Test load cell Hydraulic Tensile Testing Machine with PC Control
HD-B616 60T Hydraulic Universal Test Machine.pdf...
Structure introduction:
60T PC Control Material Hydraulic Metal Tensile Testing Machine is also named the tensile machine, which is suitable for tensile, compression, bending and shear tests of various metallic and non-metallic materials, which can also be used for similar tests of concretes, cements and other non-metallic materials. The machine adopts underneath type cylinder, adjustable test space, four-column structure, and has the features of automatic tracking measurement of forces and displacements, maximum load peak hold, as well as loading speed display, test results can be stored and automatically printed.Our company can customize analog universal testing machines according to customer demand.
60T PC Control Material Hydraulic Metal Tensile Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.
The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
300KN Load Cell Computer Control Hydraulic Tensile Testing Machine adopts oil pressure transducer to measure load, use computer control & display load.
Main specifications:
|
Model: |
HD-B616 |
|
Max. Test load: |
60T |
|
Relative error of indicate value of load : |
±1% |
|
Max. Ram stroke: |
250mm |
|
Max. Tensile space: |
800mm(including piston stroke) |
|
Max. Compression space: |
700mm(including piston stroke) |
|
Display: |
Computer control and display |
|
Tensile grips for round specimen : |
φ6-φ26mm |
|
Tensile grips for flat specimen: |
0-15mm |
|
Distance for two columns: |
500mm |
|
Upper and lower platen size: |
200x200mm |
|
The span of bending: |
450mm |
|
Width of bending roller: |
140mm |
|
Dia. of bending roller: |
30mm |
|
Clamping mode: |
Hydraulically |
|
Transducer: |
load cell |
|
Deformation measuring: |
YYU–10/50 |
|
Dimensions of load frame : |
990×600×2435mm |
|
Dimension of controller : |
1140×700×930mm |
|
All weight: |
2800kg |
Main standard accessories:
|
Upper and lower platen for compression(200x200mm) |
1 set |
|
Extensometer |
1 set |
|
Round specimen grip for tensile ( φ6-φ26mm ) |
1 set |
|
Flat specimen grip for tensile ( 0-15mm ) |
1 set |
|
Bending accessories |
1 set |
|
High accurate load cell |
1 set |
|
High precision photoelectric encoder Measuring the displacement |
1 set |
|
High pressure pump |
1 set |
|
Proportion Valve |
1 set |
|
Electro-hydraulic servo valve |
1 set |
|
Shearing accessories ( Optional accessories) |
1 set |
1. it is digtial type
2. it is hydraulic
3. it can do the test of tensile, compression, bending, and so on
1. instroduction
Model WES-300B hydraulic universal testing machine UTM is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
Computer Control And Display Hydraulic Metal Tensile Testing Machine has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
