Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor ASTM ISO DIN GB

Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB
Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB

Large Image :  Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor ASTM ISO DIN GB

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-B609B-S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 Piece / Pieces Per Month

Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor ASTM ISO DIN GB

Description
Weight: Approx.75kg Screw: High Precise Ball Screw
Motor: Panasonic Servo Motor Capacity: 5, 10, 20, 25, 50, 100, 200kg
Test Speed: 0.1-500mm/min (adjustable ) Max. Stroke: 1000mm (including Fixture)
Power: 1ø,AC220V, 50HZ Display Device: LCD Or PC
High Light:

universal test equipment

,

tensile testing equipments

Laboratory Peel Adhesion Rubber Tensile Testing Machine ASTM ISO DIN GB





Universal Test Machine.pdf



Product Description

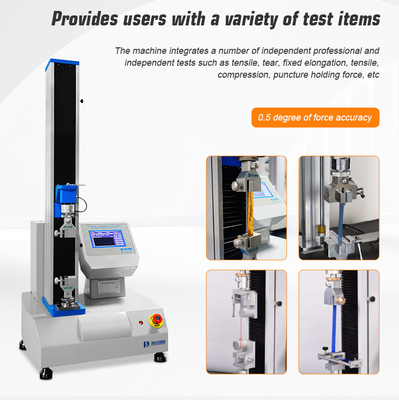

Laboratory Rubber Material Peel Adhesion Tensile Testing Machine is designed and manufactured according to ASTM, ISO, DIN, GB and other international sstandards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in the corresponding industries, research and development, test institutes and training centers etc.

Main Technical Parameters

Items

Specification

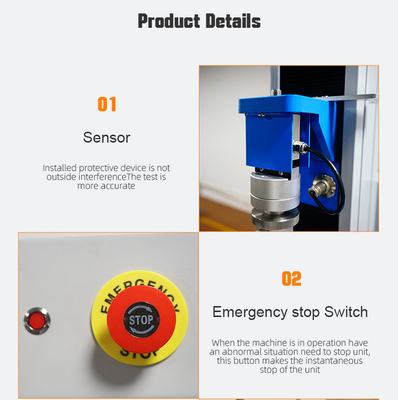

Sensor

Celtron load cell

Capacity

5, 10, 20, 25, 50, 100, 200kg

Unit Switchover

G, KG, N, LB

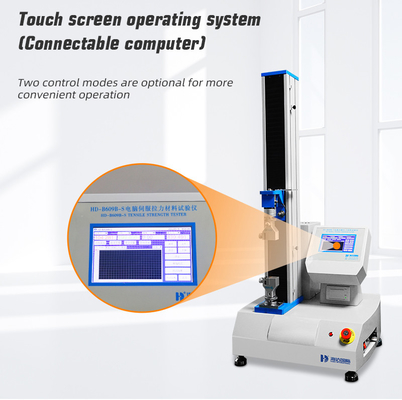

Display Device

LCD or PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1000mm (including fixture)

Test Speed

0.1-500mm/min (adjustable )

Motor

Panasonic Servo Motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1ø,AC220V, 50HZ

Weight

Approx.75kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual


Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Displacement resolution: 0.001mm.
3. User can set parameters of product material such as length, width, thickness, radius, area and so on.
4. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
5. Data transmission: RS232.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. Graph scale automatic optimization can make graph to display with best measurement and can implem- ent graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

Optional Note:
How to buy electronic universal testing machine:
First, the different materials testing machine needs:
1. Metallic materials testing machine requirements
2. Plastic material (polymer) of the test machine requires
3. Plastic pipe requirements for testing machines
4. Rubber material testing machine requirements
5. Textile fiber materials required for the testing machine
6. Required spring bearing on the testing machine
7. Film, foil material testing machine of claim
8. Products (or product) of the test machine requires
Second, there are different needs in different sectors of the test machine.

Application of Industry:
Tensile Testing Machine widely used measure quality; rubber and plastics; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civilian nuclear energy; civil aviation; universities; research laboratory; inspection arbitration, technical supervision departments; building ceramics; petrochemicals; other industries.

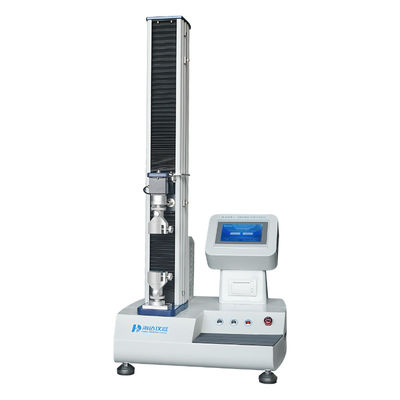

Tensile Testing Machine View:
 Laboratory Peel Adhesion Rubber Tensile Test Machine Panasonic Servo Motor  ASTM ISO DIN GB 0
