Programmable White Salt Spray Corrosion Testing Environment Test Chamber

Certification
China Hai Da Labtester certification
China Hai Da Labtester certification
Customer Reviews
Yes we received the machine last week. This Machine was nice, and thank the after-sales serives, was very professional.

—— Peter Maas

The melt flow tester is working very good. The delivery was more faster than expect, your after-sales servies team memembers were nice, and the technical support was perfect.

—— Steve Hubbard

I'm Online Chat Now

Programmable White Salt Spray Corrosion Testing Environment Test Chamber

Programmable White Salt Spray Corrosion Testing Environment Test Chamber
Programmable White Salt Spray Corrosion Testing Environment Test Chamber
Programmable White Salt Spray Corrosion Testing Environment Test Chamber Programmable White Salt Spray Corrosion Testing Environment Test Chamber Programmable White Salt Spray Corrosion Testing Environment Test Chamber Programmable White Salt Spray Corrosion Testing Environment Test Chamber

Large Image :  Programmable White Salt Spray Corrosion Testing Environment Test Chamber

Product Details:
Place of Origin: china
Brand Name: Haida
Certification: ISO,CE,.......
Model Number: HD-E808
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after receive the order
Payment Terms: D/P, Western Union, MoneyGram
Supply Ability: 300 sets months

Programmable White Salt Spray Corrosion Testing Environment Test Chamber

Description
PH: NSS ACSS6.5~7.2 CASS 3.0~3.2 Power: 1A C220V
Certificate: ISO9001:2008 Design Criteria: CNS, JIS, K5400, Z2371, ASTM
Spray Quantity: 1.0~2.0 Ml / 80cm2 / Hr Warranty Period: 12 Months
Brine Temperature: 35°C±1°C Test Chamber Temperature: NSS ACSS 35±1°C CASS:50±1°C
Temperature Precision: ±1°C Color: White
High Light:

salt fog testing

,

salt spray test machine

Programmable White Salt Spray Corrosion Testing Environment Test Chamber



Product Description:



Salt Spray Chamber through the examination of the material and its ability to salt spray corrosion protective layer, and a protective layer similar process quality compared to the same time assess the ability of certain product resistance to salt spray corrosion; this product is suitable for parts and components, electronic element, protective layer, and salt spray corrosion testing of industrial products, metal materials.



Features:



1.Automatic add water when water shortage, with a group of manually water

2.Special glass nozzle, guarantee non-crystalline block for 4000 hours

3.With dual over-temperature protection, water shortage warning, ensure safety use

4.Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree

5.Chamber adopts direct steam heating method, fast warming, shortening standby time

6.Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.



Precautions:


1, after the end of each test, the switch should open the oil-water separator, the oil water put the net, and wipe clean.
2, if a long-term test should not saturated the water put the net, in normal use, should periodically replace the water in the saturator.
3, not long-term, if re-do the test, and to deal with all the electrical supply, gas supply system to make a specific system check, after the failure to prevent the boot.
4, found dirt clogging the nozzle, remove the nozzle promptly with alcohol, xylene, or 1: 1 hydrochloric acid wash or superfine wire careful and clear, not damage the wall of the nozzle opening, so as not to affect the spray quality.



Image:

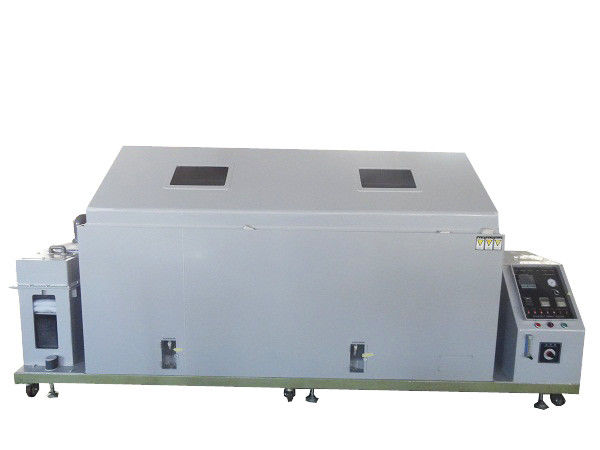

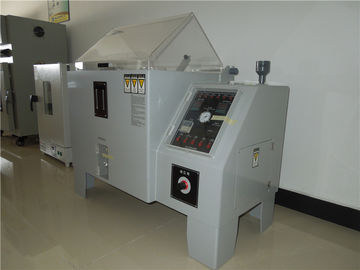

Programmable White Salt Spray Corrosion Testing Environment Test Chamber 0

Programmable White Salt Spray Corrosion Testing Environment Test Chamber 1Programmable White Salt Spray Corrosion Testing Environment Test Chamber 2



Chamber Material:

1, Chamber shell: 8mm corrosion resistance PVC plate, 85℃high temperature resistance.

2, Sample holder: fiberglass rod, corrosion resistance.

3, Pressure barrel: 2.0mm SUS#304, seamless joint.

4, Heater: titanium alloy electric heater, corrosion resistance.

5, Machine support: SECC iron with paint spray, have wheels for sliding.

6, Chamber cover: with imported 8mm PVC acrylic transparent observation window.

7, Cover open method: SNS pneumatic method for uniform performance.

8, Machine cover and body are sealed with water to avoid gas leakage.

9, Gas pipe uses corrosion resistance silicone tube.

10, Equip with double gas filtration device to ensure the discharge gas is not harmful for environment.



Product Parameters:

Model

HD-E808-200-1

Internal dimension (L×W×H)

2000×1000x800 mm

External dimension (L×W×H)

3600x1350x1700 mm

Temperature Range

Room temperature ~50℃

Humidity range

>95%R.H

Temperature Fluctuations

≤±0.5℃

Temperature Uniformity

≤±2℃

SO2 input method

Steel cylinder method, automatic

SO2 discharge method

With SO2 filtration device, Sodium hydroxide and activated carbon for double filtering system

SO2 concentration

A quantity of 2L SO2 in a test chamber volume of 300L (0.67%)

SO2 concentration control method

Controlled by flow meter

Test Chamber Temperature

Salt Spray Method (NSS ACSS) 35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS) 47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃

Brine Temperature

35℃±1℃

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS 6.5~7.2)
Corrosion-resistant Testing Method (CASS) 3.0~3.2

Brine Tank Capacity

40L

Power

Three phase, AC380V, 50Hz

Multiple Safety Protection Devices

Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/Nozzle Equipment x 1 set

Standard

ASTM B117, DIN 50018…



Main Components:

Controller x 1set

Sensor x 2pcs

Pressure regulation valve x 2pcs

Spray magnetic valve x 1pc

SO2 feeding magnetic valve x 1pc

Cyclic motor x 1pc

Desulphuration water pump x 1pc

Water inlet magnetic valve x 1pc

Water level meter x 4pcs

Heater x 1pc

Air filter x 1pc

O shape sample holder x 16pcs

V shape sample holder x 12pcs

Sodium chloride x 2 bottles

Measuring tank x 1pc

Hydrometer x 1pc

User manual x 1pc

Operation video x 1pc
