Product Details:
|
| Usage: | Universal Material Waterproof / Water Spray / Rain Spray Test Chamber | Rotating Speed: | Adjustable |
|---|---|---|---|
| Arm Radius: | 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Or 1500mm | Rotating Angle: | +/-270, Adjustable |
| Rotating Table: | Speed Is Adjustable | Flow Rate: | 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K) |
| Nozzle Distance: | 50mm | Nozzle Diameter: | 0.4mm |
| Power: | 1 Phase, 220V, 5KW | Weight: | Approx.350kg |
| Specimen Rotative Speed: | 1-3r/min (Adjustable) | ||
| High Light: | ingress protection test equipment,ingress protection testing |
||
Professional IPX5 / IPX6 IP Test Equipment Environmental Instrument
Haida IPX1 - IPX8 Rain Test Chamber.pdf
Description:
The IPX5 / IPX6 Waterproof / Water Spray / Rain Spray Test Instrument is mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.
Features of IPX5 / IPX6 Material Waterproof / Water Spray / Rain Spray Test Instrument:
1. Rotating rain and spray nozzles designed to IPX specifications
2. Speed control for the rotating spray nozzles
3. Stationary product shelf - A rotating shelf is optional
4. Water pressure regulators, gauges and flow meters
5. Water circulation system to reduce water consumption
6. Adjustable swivel angle
7. Replaceable swivel tubes
8. Nozzle fittings can be swiveled
9. Exchangeable nozzle fittings
10. Adjustable water volume flow
11. Measurement of water volume flow
Main Parameters of IPX5 / IPX6 Waterproof / Water Spray / Rain Spray Test Instrument:
|
Model |
HD-E712 |
|
Studio size |
(D×W×H)80 ×130 ×100cm |
|
Swing pipe diameter |
0.4m, 0.6m, 0.8m, 1.0m (according to the size of the measured object to select the swing pipe size) |
|
Pendulum tube angle |
60 degrees ,vertical ± 90 and 180 degrees |
|
Orifice |
The removable design, pinhole 0.4mm, specially designed nozzle, spray rain rain water pressure 50-150kpa |
|
Testing temperature |
Room temperature |
|
Specimen rotative speed |
1-3r/min (Adjustable) |
|
Power |
1 phase, 220V, 5KW |
|
Weight |
approx.350kg |
Water Pumping System (For IPX1,2, IPX3,4, IPX5,6)
1. Water pump for large flow: 0-7m3/h
2. Water pump for small flow: 0-3m3/h
3. Water inlet
4. With water filters
5. Pressure display and water flow display
6. Safety overload protection on pump and motor
Water Dripping Test (Meet IPX1 and IPX2 test)
1. LCD touch screen controller with PLC control
2. Drip box size: 1000x1000mm (or 500x500mm),or custom size as option
3. Needle diameter: 0.4mm
4. Distance between needle: 20mm
5. Dropping rate: 1mm+0.5mm/min (IPX1),3mm+0.5mm/min (IPX2)
6. Dropping height: 200mm (adjustable)
7. With timer, flow display
8. With rotating table, diameter 700mm, 1rpm,
9. 15o tilt plate, height adjustable
10. Meet IEC60529, IEC60598
Rain Spray System (Meet IPX3 and IPX4, 4K test)
1. LCD Touch Screen Display and Control
2. Nozzle diameter: 0.4mm
3. Nozzle distance: 50mm
4. Flow rate: 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)
5. Arm Radius: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm or 1500mm
6. Rotating angle: +/-270, adjustable.
7. Rotating speed: adjustable
8. Rotating table: speed is adjustable
9. Adjustable spray flow and spray time.
10. With 0-400kPa adjustable pressure regulator
11. All 304 stainless steel design, both interior and exterior
12. With chamber as option

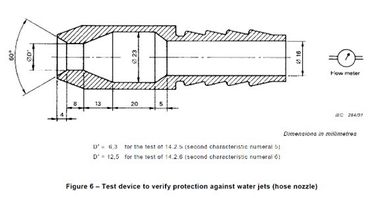

Jet Nozzle (Meet IPX5 and IPX6 test)
1. 6.3mm nozzle diameter, for IPX5 test. Water flow: 12.5L/min.
2. 12.5mm nozzle diameter, for IPX6 test. Water flow: 100L/min.
3. Meet IEC60529, IEC60335
4. Water Pumping System as option
PLC Controller:
1. PLC + touch screen interface
2. test parameter setting and monitoring
IPX5 / IPX6 Material Waterproof / Water Spray / Rain Spray Test Instrument view:
