Professional Hot and Cold Temperature Thermal Shock Test Chamber Three-zone chamber

Professional Hot and Cold Temperature Thermal Shock Test Chamber Three-zone chamber

    • Professional Hot and Cold Temperature Thermal  Shock Test Chamber Three-zone chamber
    • Professional Hot and Cold Temperature Thermal  Shock Test Chamber Three-zone chamber
    • Professional Hot and Cold Temperature Thermal  Shock Test Chamber Three-zone chamber
  • Professional Hot and Cold Temperature Thermal  Shock Test Chamber Three-zone chamber

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-E703

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 75 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Usage:: Thermal Shock Test Chamber Temp. Heat Up Time*3: Ambient Temp. To +200°C Within 30min
    Pre-cool Lower Limit: -65°C Allowable Ambient Conditions: +5~30°C
    Power Supply: AC380V, 50/60Hz, Three Phase , 30A Cooling Water Supply Pressure*6: 02~0.4Mpa
    System::: P.I.D+S.S.R+Micro-coemmputer Balanced Te Temperature Range:: -70~200C
    High Light:

    environmental testing equipment

    ,

    environmental test chamber

    Professional Hot and Cold Temperature Shock Simulate Test Chamber



    Thermal Shock Chamber.pdf



    Professional Hot and Cold Temperature Thermal  Shock Test Chamber Three-zone chamber 0

    Description:



    Professional Hot and Cold Temperature Shock Simulate Test Chamber is a metal, plastic, rubber, electronics and other industries essential material testing equipment for testing material structure or composite material, in an instant by the level very high temperatures and very low temperature environment can tolerate continuous, chemical changes in the sample can be detected within a short time due to the thermal expansion and contraction caused or physical damage. Divided hatchback and San Xiangshi, except that different test methods and internal structures, products meet standards: GB / T2423.1-2008 test A, GB / T2423.2-2008 test B, GB-T10592-2008, GJB150 .3-198, GJB360A-96 107 method of temperature shock test requirements.





    usage



    Professional Hot and Cold Temperature Shock Simulate Test Chamber is suitable for the product safety testing electronic vitality of providing reliability testing, screening tests and other products, through this equipment test, can improve product reliability and product quality control. High and low temperature impact test chamber are aerospace, automotive, home appliances, research and other fields necessary test equipment, examination and determine the electrical, electronics, automotive electronics, materials and other products, parameters and performance during high temperature environment of low temperature impact test after change adaptive use for schools, factories, military, and research position, and other units.





    Specifications



    System

    Two-zone test by means of damper switching

    Three-zone chamber

    Model

    HD-E703-50A/HD-E703-50W

    HD-E703-100A/HD-E703-100W

    Customized

    Performance

    Test area

    High temp. exposure range*1

    +60~ to +200°C

    Low temp. exposure range*1

    -65to 0 °C

    Temp. fluctuation *2

    ±1.8°C

    Hot chamber

    Pre-heat upper limit

    +200°C

    Temp. heat up time*3

    Ambient temp. to +200°C within 30min

    Cold chamber

    Pre-cool lower limit

    -65°C

    Temp. pull down time*3

    Ambient temp. to -65°C within 70min

    Temp. recovery (2-zone)

    Recovery conditions

    Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)

    Temp. recovery time

    Within 10 min.

    Construction

    External material

    Cold-rolled rust-proofed steel plate

    Test area material

    SUS304 stainless steel

    Door*4

    Manually operated door with unlock button

    Heater

    Strip wire heater

    Refrigeration unit

    System*5

    Mechanical cascade refrigeration system

    Compressor

    Hermetically sealed scroll compressor

    Expansion mechanism

    Electronic expansion valve

    Refrigerant

    High temp side:R404A, Low temp side R23

    Cooler

    Stainless steel welded plate heat exchanger

    Air circulator

    Sirocco fan

    Damper driving unit

    Air cylinder

    Fittings

    Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal

    Inside dimensions (W x H x D)

    350 x 400 x 350

    500 x 450 x 450

    Customized

    Test area capacity

    50L

    100L

    Customized

    Test area load

    5 kg

    10 kg

    Customized

    Outside dimensions (W x H x D)

    1230 x 1830 x 1270

    1380 x 1980 x 1370

    Customized

    Weight

    800kg

    1100kg

    N/A



    Utility requirements



    Allowable ambient conditions

    +5~30°C

    Power supply

    AC380V, 50/60Hz, three phase , 30A

    Cooling water supply pressure*6

    02~0.4Mpa

    Cooling water supply rate*6

    8m³ /h

    Operating cooling water temp. range

    +18 to 23 °C

    Noise Level

    70 dB or lower




    Shock chamber works as follows:



    1, low temperature storage tanks: tank temperature is determined by the state of the duct heater, evaporator and the working status of the fan. After the expansion valve throttling the refrigerant flowing into the evaporator in the working chamber, the working chamber of heat absorption and gasification, to reduce the temperature of working chamber; gasified refrigerant is sucked and compressed to a high temperature, high pressure gas into the condenser compressor It is condensed into liquid, and then the screening program, and finally through the expansion valve is throttled after re-entering the working chamber and the evaporator absorbs heat and gasify and then compressed by the compressor suction.


    2, high-temperature storage tanks: a central controller temperature sensing signal from the detection instant, and the set temperature signal is compared, the comparison signal obtained by the instrument PID logic circuit output signal to control the solid state relay is turned off or adjusting the heating time ratio output power level, so as to achieve the purpose of automatic temperature control.


    3, temperature shock test chamber: the meter automatically controlled high temperature valves, low or high temperatures between the storage chamber switched respectively to form a closed air circulation system and low temperature box or boxes, quickly reached the target temperature tests.




    Notes


    1. in operating them, unless absolutely necessary, do not open the door, as this may lead to adverse consequences following.
    High temperature heat out of the box outside is very dangerous.
    The inner door remains hot enough to cause burns.
    Temperature air could trigger a fire alarm malfunction.
    2. Please note that the unit must be safe indeed grounded to avoid electrostatic induction.
    3. Avoid close within three minutes then turn refrigeration units.
    4. If the fever is placed inside the sample, the sample power control using the external power supply, do not use direct power of this machine.
    5. No fuse switch (circuit breaker), the temperature over-temperature protection, providing native security test article and the operator, so please check regularly.
    6. Absolute test ban explosive, flammable and highly corrosive substances.
    7. Please read the manual before operating the unit.





    Safety Devices

    1. Hot chamber overheat protection switch
    2. Cold chamber overheat protection switch
    3. Air circulator overload alarm
    4. Refrigerator high/low pressure protector
    5. Compressor temperature switch
    6. Air pressure switch
    7. Fuse
    8. Water suspension relay ( water-cooled specification only)
    9. Compressor circuit breaker
    10. Heater circuit breaker
    11. Test area overheat/overcool protector
    12. Air purge valve



    Daily maintenance


    1, hot and cold shock me a long shutdown is not used regularly every half power, power time is not less than one hour, and related spare parts and testing equipment is functioning properly.
    2,, hot and cold shock boxes should be cleaned regularly evaporator: cleanliness levels because the test is different, in the forced air circulation effect, will gather a lot of dust particles and other small objects on the evaporator should be cleaned regularly.
    3, low-temperature chamber circulation fan, condenser fan and clean balance correction: cleaning and evaporator is similar because of different working environment chamber, circulating fan, will gather a lot of dust and other small particles on the object condenser fan should regular cleaning.
    4, hot and cold shock box device To move preferably at Paddy ASHDOWN Lai instrumentation technician guidance, in order to avoid damage to the equipment, such as customer self relocation, must have a professional electrician before turning on power to confirm correct operation of the circuit, or will burned equipment related components.





    Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.



    Setting

    Interactive key input by touch panel

    Display

    LCD (5.7 inches)

    Temperature control function

    Test area: exposure temp.

    Hot chamber: pre-heating temp.

    Cold chamber: pre-cooling temp.

    PID control

    Preset temperature range

    High temperature: 60 to200’C

    Low temperature: -78 to 0’C

    Setting resolution

    1’C

    Input

    Thermocouple type T (Copper/Copper-Nickel)

    Setting and indication ranges

    Preset time: 0 min. to 99 hours and 59 min.

    Preset cycle: 1 to 9,999 cycles

    Accessory function

    Timer preset

    Overheat/ overcool protection

    Power failure/ recovery selection

    Temperature recovery time setting

    Program memory

    Automatic power shut-off

    Programmed time display

    Test completion mode selection

    Trend graph

    Alarm history display

    Sensor calibration

    RS-232/ USB communication

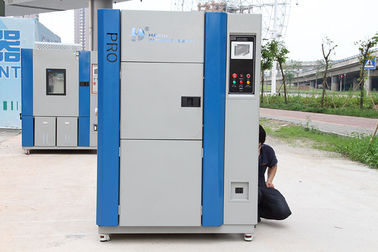

    4. Professional Hot and Cold Temperature Shock Simulate Test Chamber view:
