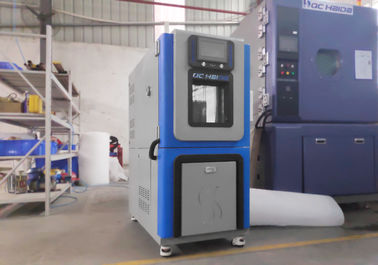

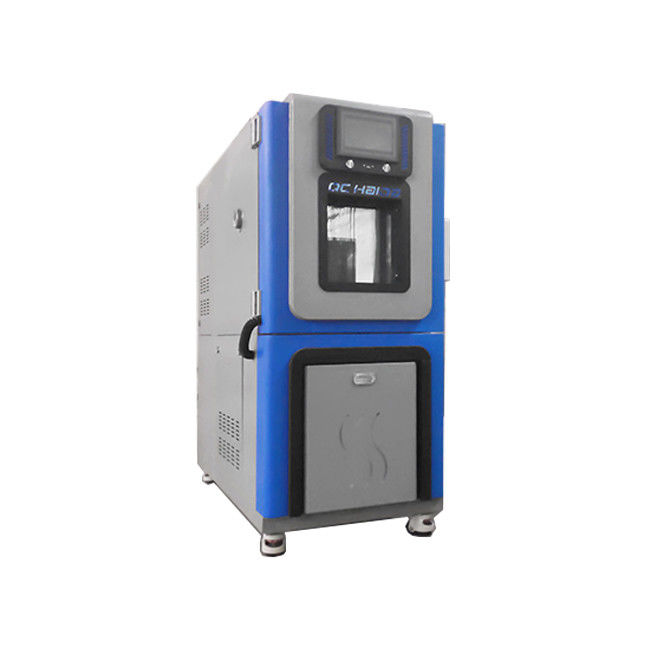

Professional Temperature Humidity Chamber Environmental Testing Equipment

Professional Temperature Humidity Chamber Environmental Testing Equipment

    • Professional Temperature Humidity Chamber Environmental Testing Equipment
    • Professional Temperature Humidity Chamber Environmental Testing Equipment
    • Professional Temperature Humidity Chamber Environmental Testing Equipment
    • Professional Temperature Humidity Chamber Environmental Testing Equipment
  • Professional Temperature Humidity Chamber Environmental Testing Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-E702

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 75 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Usage: Constant Temperature And Humidity Testing Machine Temp. Range: -70°C~150°C
    Temp. & Humid. Accuracy: ± 0.3°C; ± 2 Percent R.H Heating Up: -40°C ~ +100°C Within 45 Min
    Exterior Dimension(W×D×H): 145x190x135cm Weight: Approx. 600 Kg
    Power: AC220V±10 Percent 50/60Hz Use: Constant Temperature Humidity Testing Chamber
    High Light:

    Temperature And Humidity Controlled Cabinets

    ,

    Temperature Humidity Test Chamber

    Professional Temperature Humidity Chamber Environmental Testing Equipment





    Temperature and humidity chamber.pdf





    1. Features of Environmental Stability Temperature Humidity Test Chamber:



    Standard Features:

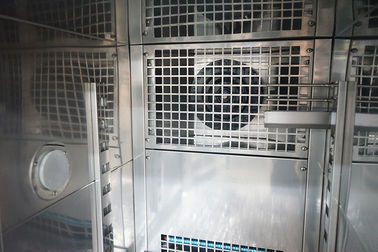

    • Stainless# 304  steel for interior
    • Paint steel for exterior
    • Foam-insulated door for rigidity and long life
    • Plastic water tank easy for maintenance
    • Observation Window with frost free function
    • High performance refrigeration system
    • Easy user interface for TEMI-880 PLC controller
    • One 100mm cable port/ Customer specified
    • One shelve, 10 Kg loading  & 4 casters included
    • Van Type Sirocco,L134,Fan
    • PID controlled-Stainless Steel Humidifier
    • DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
    • USB port for data output
    • Anti-explosive interior lamps
    • Data logging chart recorders, paperless recorders stored data in the PLC.



    The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.





    International Applications



    HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam.  And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.







    2. Performance of Environmental Stability Temperature Humidity Test Chamber



    Get a performance evaluation to help provide the suitable chambers to you.



    For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.



    Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.





    System & Performance Options

    • Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
    • Water-cooling system.
    • Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
    • Additional shelves, 50 Kg  loading
    • Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters



    3. Specifications of Environmental Stability Temperature Humidity Test Chamber



    Range – 70 to 150°C



    Temp/Humidity

    HD-E702-100-7

    HD-E702-150-7

    HD-E702-225-7



    HD-E702-408-7

    HD-E702-800-7

    HD-E702-1000-7

    Temp-only

    HD-E702-100T-7

    HD-E702-150T-7

    HD-E702-225T-7



    HD-E702-408T-7

    HD-E702-800T-7

    HD-E702-1000T-7

    Temperature Range:

    -70°C ~150°C

    Cooling Capacity

    ~ 2.5 kW at -50°C

    ~ 3 kW at -50°C

     ~ 5 kW at -50°C



    ~ 6.5 kW at-50°C

    ~ 8.5 kW at -50°C

    ~ 9 kW at - -50°C

    Heating System

    ~ 5 kW

    ~ 5 kW

    ~ 5.5 kW



    ~6.5 kW

    ~ 8.5 kW

    ~ 9 kW

    Temperature Fluctuation:

    ±0.5°C

    Temperature Gradient:

    ±0.5°C~±0.2°C

    Heating Rate†:

    ≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

    Cooling Rate†:

    ≥1℃ / min average (Advance model 5 - 15℃ / min)

    Humidity Range:

    10%~95%RH (Ref to Normal Humidity Range Diagramed)

    Humidity Fluctuation:

    ±1.5%RH~±2.0%RH

    Humidity Gradient:

    ±3%RH

    Dimensions

    Workspace dimensions
    (WxDxH)mm:

    500x400x500

    HD-E702-100

    600x500x500

    HD-E702-150

    750x500x600

    HD-E702-225



    850x650x800

    HD-E702-800

    1000x1000x800

    HD-E702-800

    1000x1000x1000

    HD-E702-1000

    Exterior dimensions
    (WxDxH)mm:

    1400x850x1050

    1500x950x1050

    1650x950x1150



    1750x1050x1350

    1900x1450x1350

    1900x1450x1550

    Site Requirements

    Electrical Supply:

    208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

    Humidity Water

    Distilled water

    Condensate Drain:

    1/2" hose connection (gravity drain)





    Range – 40 to 150°C



    Temp/Humidity

    HD-E702-100-4

    HD-E702-150-4

    HD-E702-225-4



    HD-E702-408-4

    HD-E702-800-4

    HD-E702-1000-4

    Temp-only

    HD-E702-100T-4

    HD-E702-150T-4

    HD-E702-225T-4



    HD-E702-408T-4

    HD-E702-800T-4

    HD-E702-1000T-4

    Temperature Range:

    -40°C ~150°C

    Cooling Capacity

    ~ 2 kW at -20°C

    ~ 2.5 kW at -20°C

     ~ 4.5 kW at -20°C



    ~ 5.5 kW at-20°C

    ~ 8 kW at -20°C

    ~ 8.5 kW at - -20°C

    Heating System

    ~ 5 kW

    ~ 5 kW

    ~ 5.5 kW



    ~6.5 kW

    ~ 8.5 kW

    ~ 9 kW

    Temperature Fluctuation:

    ±0.5°C

    Temperature Gradient:

    ±0.5°C~±0.2°C

    Heating Rate†:

    ≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

    Cooling Rate†:

    ≥1℃ / min average (Advance model 5 - 15℃ / min)

    Humidity Range:

    10%~95%RH (Ref to Normal Humidity Range Diagramed)

    Humidity Fluctuation:

    ±1.5%RH~±2.0%RH

    Humidity Gradient:

    ±3%RH

    Dimensions

    Workspace dimensions
    (WxDxH)mm:

    500x400x500

    HD-E702-100

    600x500x500

    HD-E702-150

    750x500x600

    HD-E702-225



    850x650x800

    HD-E702-800

    1000x1000x800

    HD-E702-800

    1000x1000x1000

    HD-E702-1000

    Exterior dimensions
    (WxDxH)mm:

    1400x850x1050

    1500x950x1050

    1650x950x1150



    1750x1050x1350

    1900x1450x1350

    1900x1450x1550

    Site Requirements

    Electrical Supply:

    208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

    Humidity Water

    Distilled Water

    Condensate Drain:

    1/2" hose connection (gravity drain)





    Questions for Performance Evolution Request



    Professional Temperature Humidity Chamber Environmental Testing Equipment 0





    4. Environmental Stability Temperature Humidity Test Chamber view

    (Advanced refrigeration design is especially compact for HD-Series Chambers)



    Professional Temperature Humidity Chamber Environmental Testing Equipment 1
