Product Details:
|
| PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | Power: | 1A C220V |
|---|---|---|---|
| Certificate: | ISO9001:2008 | Design Criteria: | CNS, JIS, K5400, Z2371, ASTM |
| Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr | Warranty Period: | 12 Months |
| Brine Temperature: | 35°C±1°C | Test Chamber Temperature: | NSS ACSS 35±1°C CASS:50±1°C |
| Temperature Precision: | ±1°C | Color: | White |
| High Light: | corrosion testing equipment,salt fog testing |
||

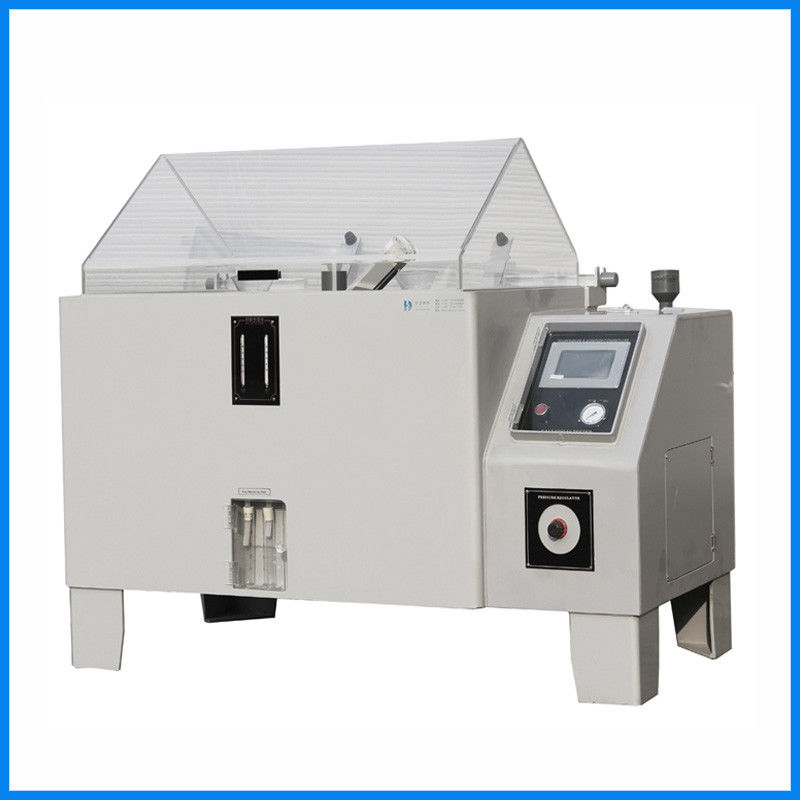

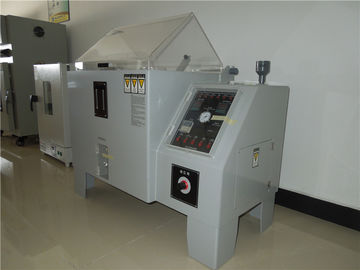

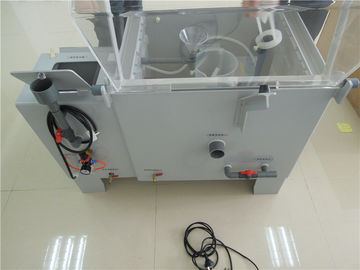

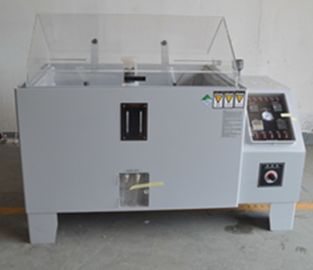

Safety Corrosion Tester Salt Spray Test Chamber ISO Certificated OEM
Product Description:
Salt Spray Chamber adapted to the surface treatment of various materials, including paint, electroplating,
organic and inorganic coating, anode processing, antirust oil and so on, after these anti`corrosive treatment to test the corrosion resistance of their products.
Specification:
|
Model |
HD-E808-60 |
HD-E808- 90 |
HD-E808-120 |
HD-E808-160 |
HD-E808-200 |
|
Work-space volume: |
108L (3.8 cu. ft.) |
270L (9.5 cu. ft.) |
600L (21 cu. ft.) |
800L (28 cu. ft.) |
1440L (50.8 cu. ft.) |
|
|
Dimensions |
||||
|
Workspace dimensions (WxDxH): |
60× 40× 45 cm (23.6" x 15.7" x 17") |
90× 60× 50cm (35" x 23.6" x 19.6") |
120× 100× 50 cm (47" x 39.3" x 19.6") |
160× 100× 50 cm (63" x 39.3" x 19.6") |
200× 120× 60 cm (78.7" x 47" x 23.6") |
|
Exterior dimensions (WxDxH): |
107× 60× 118 cm (42" x 23.6" x 46") |
141× 88× 128cm (55.5" x 34.6" x 50") |
190× 130× 140 cm (74.8" x 51" x 55") |
230× 130× 140 cm (90.5" x 51" x 55") |
270× 150× 150 cm (106" x 59" x 59") |
|
|
Performance |
||||
|
Temperature Range: |
RT+5°C ～55°C (RT+-41°F ～ 131°F) |
||||
|
Temperature Fluctuation: |
± 0.5° C |
||||
|
Temperature Gradient: |
± 2° C |
||||
|
Spray Quantity |
1.0~2.0 ml / 80cm2 / hr |
||||
|
Power |
AC220V, 1Ø ,30A |
||||
|
Safety Protection |
Multiple Safety Protection Devices |
||||
|
Accessories |
Testing Salt/ Measuring tank/ Equipment each 1 set |
||||
|
Standard |
CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268, MIL-STD-810F |
||||
Operation interface:
