30 Times/Min Universal Chair Drop Impact Tester

30 Times/Min Universal Chair Drop Impact Tester
30 Times/Min Universal Chair Drop Impact Tester
30 Times/Min Universal Chair Drop Impact Tester 30 Times/Min Universal Chair Drop Impact Tester 30 Times/Min Universal Chair Drop Impact Tester

Large Image :  30 Times/Min Universal Chair Drop Impact Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F736
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per Month Haida

30 Times/Min Universal Chair Drop Impact Tester

Description
Adjustable Drop Height: 10mm To 180mm Weight Sensor: 200Kg
Largest Chair Dimensions Width: 1000mm Test Speed: 0~30 Times/min
High Light:

30 Times/Min Drop Impact Tester

,

IMC Drop Impact Tester

,

CMA Chair Testing Machine

Universal Furniture Chari Testing Machines Equipment



Equipment Description



Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

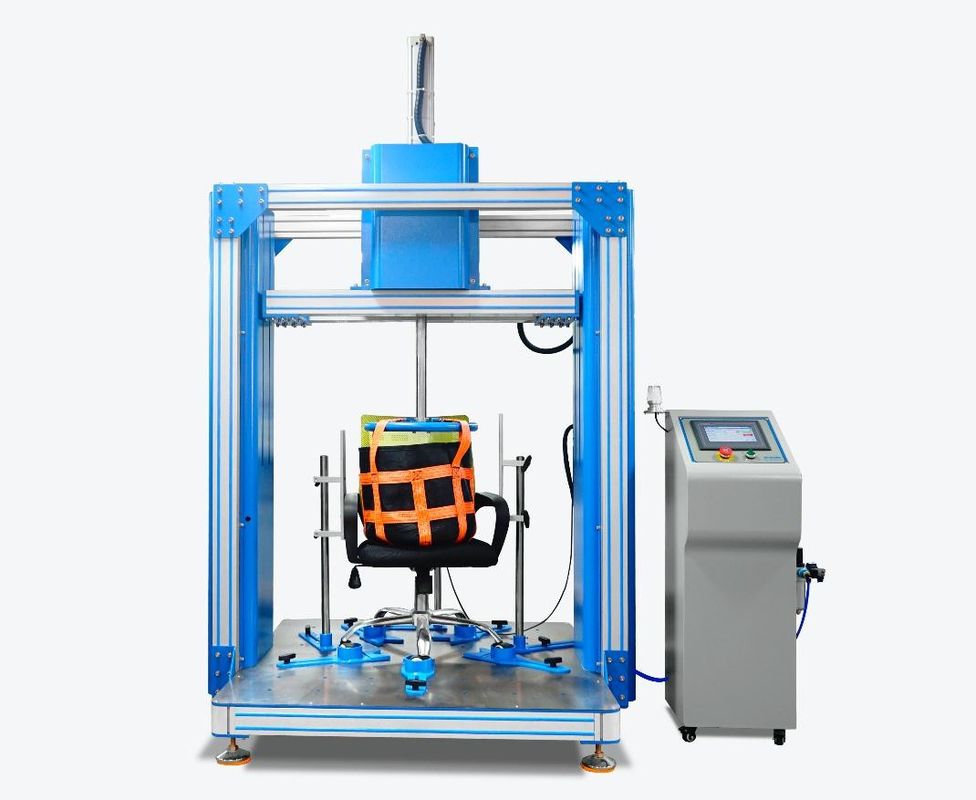

30 Times/Min Universal Chair Drop Impact Tester 0



General Specifications:



Machine Dimensions: (W x D x H) 1600*1500*2400 mm

Power supply source: single-phase, AC220Volt, 50Hz

Gross Weight: 820kg



Adjustable Drop Height 10mm to 180mm
Weight Sensor 200Kg
Largest chair dimensions width 1000mm
Test speed 0~30 times/min
Times setting 0 ~ 999,999
Control mode PLC and LCD touch screen
Air source 6kg/cm2
Accessories

total test bag weight 136kg

(can be divided to 136kg 102kg, 57kg)







































Application standards:



BIFMA X5.1 2017 section 7 Drop Test-Dynamic & section 10 Seating Durability Tests-Cyclic.



Tester Introduction:



Test rig for chair drop test according to BIFMA X5.1 2017 Clause 7 & Clause 10.3.

To evaluate Chair to withstand fatigue stresses and wear caused by free fall vertical forces on the seat.



Test Procedure:



BIFMA X5.1 2017 Clause 7

==Functional Load Test

a) A test bag weighing 102 kg (225 lb.) shall be raised 152 mm (6 in.) above the uncompressed seat and released one time.

b) Remove the bag.

c) For chairs with seat height adjustment features, set height to its lowest position and repeat a) and b).

==Proof Load Test

Similar with Functional Load Test, but the force is 136 kg (300 lb).



BIFMA X5.1 2017 Clause 10.3

Impact load: 57kg(125lbf)

Impact height: 36mm(1.4in)

Speed:10~30 cycles/min

The chair shall be tested to 100,000 cycles.





Quality guarantee

A) Quality assurance items

The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)

  1. During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
  2. If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
  3. If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
  4. Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B) The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

① please keep the guarantee letter, if you lost it, please connect with us in a month.

② If the guarantee letter has been altered or it has no our stamp, it is useless.

C) The following conditions need to be paid reasonably even in the assurance period:

① Natural reasons

② Operating mistakes

③ Voltage is not fit for our operation instruction

④ Repack it without our guides

⑤ Damaged for borrowing to others

⑥ Damaged for authorized machine modification

⑦ Damaged for authorized calibration

⑧ Authorized transshipment mistake

⑨ Serve for long distance area
