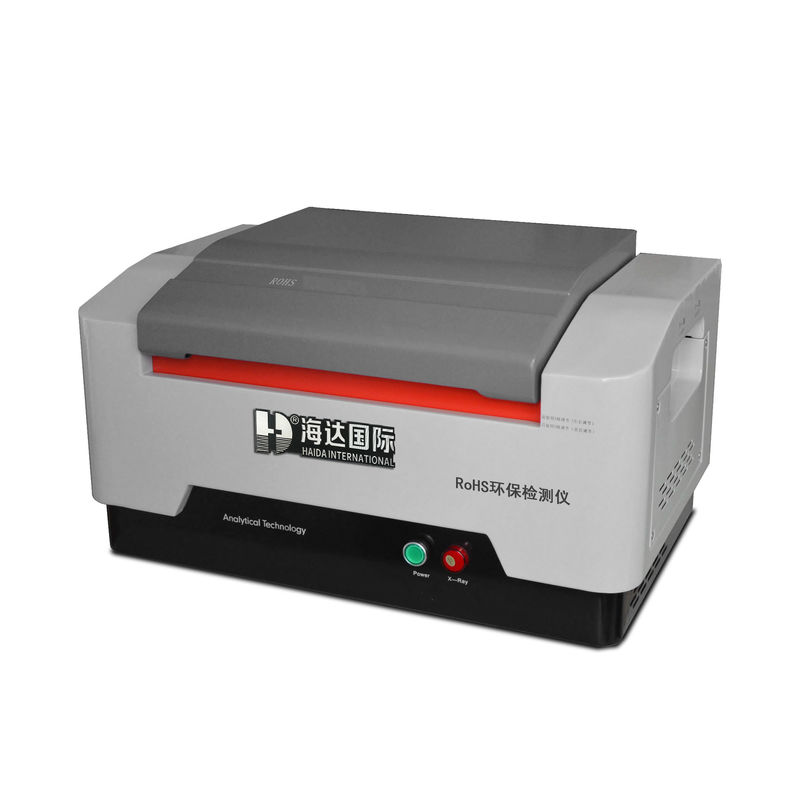

AC220V Environmental Test Chamber Precision Alloy Analyzer Measurement Of Coating

Precision alloy analyzer (measurement of coating) Multifunctional Analyzer RoHS Analyzer

It is used for the analysis and content test of the element composition in alloy materials such as copper alloy, iron alloy, aluminum alloy, titanium alloy, high temperature alloy and various hybrid alloys;

It is used for metal identification in high temperature and high pressure industries such as petrochemical industry, fine chemical industry, agricultural chemical industry, boilers, containers, pharmaceuticals, and power stations. Ux-320 precision alloy analyzer has been developed for 3 years, and it is a high-end model specifically for various alloy composition analysis, stainless steel grade identification, and soil and ore composition analysis. Huawei's original VisualFP basic parameter method analysis software can detect samples without standard sample calibration, triple-ray protection system; humanized operation interface; can analyze various alloys, stainless steel grades, soil and ore components. Can fully meet customer production control requirements and material identification. The well-designed open working curve function is especially suitable for multi-material factory process control. 1. Can realize full-automatic one-button operation, automatic collimator switching, automatic filter switching, automatic stop when the cover is opened, automatic photo taking and automatic saving of sample test photos, automatic pop-up of test reports, automatic filtering and saving of supplier information

2. Equipped with Huawei's latest VisualFP analysis software, the test data model is more scientific, the spectral shape processed by the software is more reasonable, and the calculation results are more accurate.

3 It can be used for identification of various alloys and stainless steel grades and analysis of soil and ore components.

4 It has the function of spectrum comparison to monitor the material process changes of the supplier at any time, because the environmental protection risks of the material of the supplier mainly occur in the change of raw materials and process conditions.

5 Ux-320 has a novel appearance, simple and fresh color matching, and more convenient and easy test operation. The sample movement is designed for external adjustment of the sample cavity. It is convenient and fast to move the sample during multi-point testing, which helps improve efficiency.

6. The design is more scientific, software and hardware are coordinated, electromechanical linkage, and radiation safety is higher than the national standard GBZ115-2002.

7. The software operation has the operator's hierarchical management authority. Normal operators and supervisors use different user names and passwords to log in. The test report will also automatically add the name of the tester.

8. Ux-320 can optionally be equipped with the latest alloy software VisualFP alloy composition calculation module, industry-leading module calculation method, industry-leading technology for the calculation accuracy of alloy composition.

1. Instrument size: 680 (W) x400 (D) x390 (H) mm

2. Sample cavity size: 300 * 360 * 100mm;

3. Test element range: elements in S-U

4. Detection range: 1ppm-99.99%

6. Test sample type: solid, powder and liquid

7. Measurement time: 120-400s (system automatic adjustment)

8. Optimal resolution: see detailed parameter description of detection system below

9. Collimator: Φ0.5mm, Φ1mm, Φ2mm, Φ4mm automatically switch

10. Filter: 5 kinds of composite filters automatically switch

11. CCD observation: 2.6 million pixel high-resolution CCD

12. Sample micro movement range: XY15mm

13. Input power: AC220V ～ 240V, 50 / 60Hz

14. Rated power: 350W

15. Weight: about 45Kg

16. Working environment temperature: 15-30 ℃

17. Relative humidity of working environment: ≤85% (non-condensing)

Application areas:

1. It is used for the identification and content testing of series elements of iron alloys, nickel-based alloys, cobalt-based alloys, titanium alloys, copper-based alloys, high-temperature alloys, aluminum alloys and various mixed alloys.

2. It is used for metal identification in high temperature and high pressure industries such as petrochemical industry, fine chemical industry, agricultural chemical industry, boilers, containers, pipelines, pharmaceuticals, and power stations.

3 Ferroalloy series: stainless steel, chromium / molybdenum alloy steel, low alloy steel, multiple steel

4 Copper-based series: bronze, brass, copper-nickel alloy

5 Aluminum alloy: cast aluminum alloy, profile aluminum

6. Nickel-based alloy series: nickel alloy, nickel / cobalt superalloy

7. Titanium-based alloy series: molybdenum-tungsten alloy, cobalt-based alloy series, hybrid alloy series.
