    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE、ISO
    Model Number: HD-A504-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2) Unit (switchable): Kpa, Psi, Kg/cm^2
    Speed Of Compression: High Pressure 170±10ml/min Specimen Clamping Force: >690kpa
    Motor: Anti-vibration Motor 1/8 HP Dimension (LWH): 445×425×525 Mm
    Standard Configuration: Rubber Membrane 1 Piece, Spanner 1 Set, Correction Shim 10 Sheets, Glycerin 1 Bottle Optional Configuration: Printer, Air Pump
    High Light:

    paper and packaging material testing instruments

    ,

    paper bursting strength tester

    Automatic ISTA Packaging Testing Machine For Film Bursting Test





    Haida Burst Strength Tester.pdf



    Specifications:
    1. Anti-vibration Motor 1/8 HP
    2. Operation Method:Automatic
    3. paper,cardboard testing



    The usage:

    Film Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. Its Accuracy has promoted 20 times more than the traditional gauge.



    Main technical parameters:

    Capacity : High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
    Unit (switchable): Kpa, psi, kg/cm^2
    Accuracy: 0.5%
    Pressure Range: 250~5600kpa
    Speed of Compression: High Pressure 170±10ml/min
    Specimen Clamping Force: >690kpa
    Oil: 85% Glycerin; 15% Distilled Water
    Sensing method: Pressure Transmitter
    Indicating Method & Display: LCD
    Material of the Ring Stainless Steel: SUS304
    Opening in Upper Clamp: 31.5 0.05 mm Diameter
    Opening in Lower Clamp: 31.5 0.05 mm Diameter
    Motor: Anti-vibration Motor 1/8 HP
    Operation Method: Automatic
    Dimension (LWH): 445425525 mm
    Weight: Approx. 70 kg
    Power: AC220 10%, 50 Hz
    Power Capacity: 120W
    Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
    Optional Configuration: Printer, Air Pump





    Design standard:

    JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539





    The Character:

    it is applicable to test bursting strength for paperboard.

    Advanced micro computer controller and digital processor ensure result precise.

    Printer facility and fully detailed test reports.

    Results of the tests are stored for viewing or for printing out as required.

    User-friendly menu interface

    Power protection ensure automatic record when power cut off.





    Uses:

    Bursting strength tester is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.

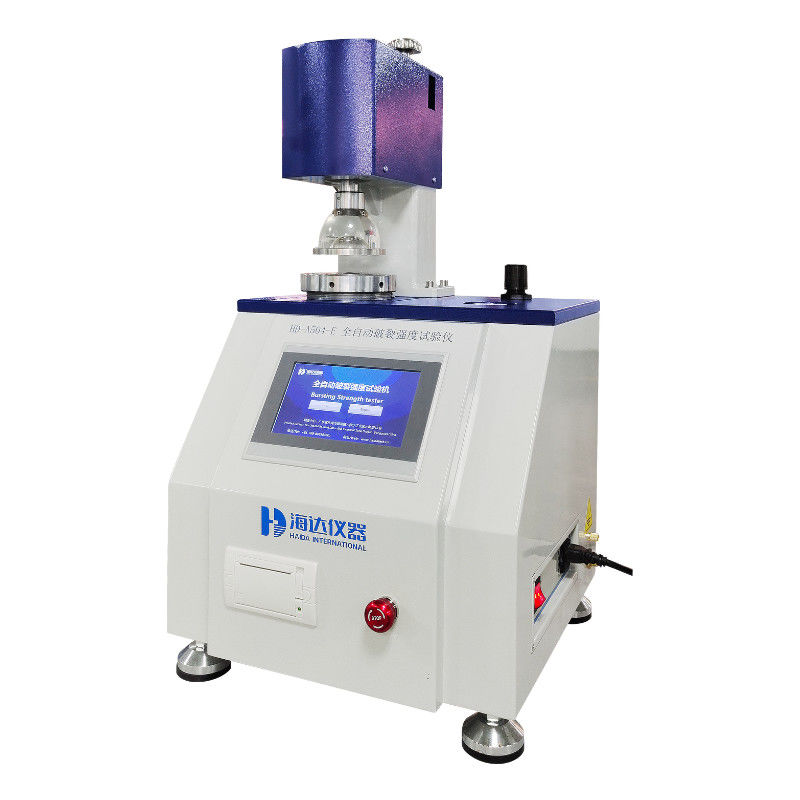

    The picture of the machine:



    Automatic Paper And Packaging Material Testing Instruments /  Film Bursting Test Machine 0

    Automatic Paper And Packaging Material Testing Instruments /  Film Bursting Test Machine 1
