Product Details:
|
| Product Name: | Cardboard Ring Crush Tester | Capacity (Optional): | 10, 20, 50, 100, 200 Kg |
|---|---|---|---|
| Resolution: | 1/100,000 | Precision: | < 0.5% |
| High Light: | ista package testing,package testing equipment |
||

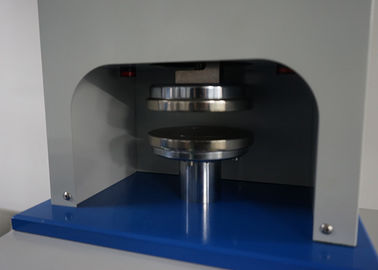

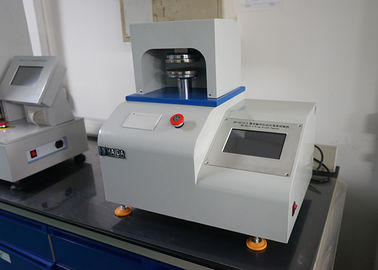

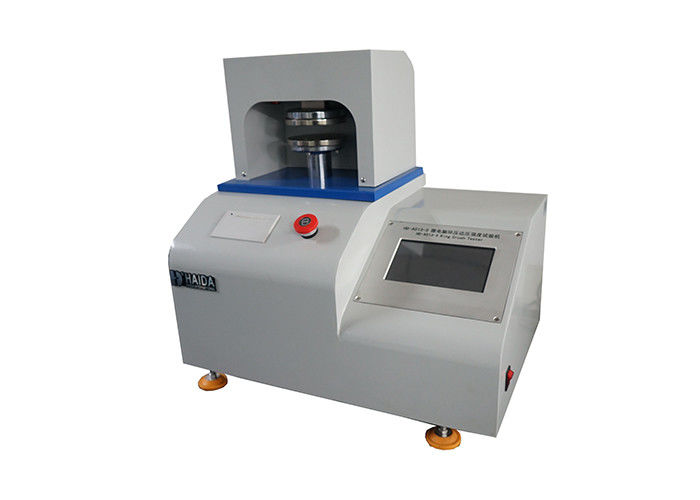

LCD Display Cardboard Ring Crush Tester ISTA Packaging Testing Machine
The Usage
Paperboard Edge Crush And Ring Crush Teste Machine is used to do the Ring Crush test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesive Strength Test (PAT), and Paper Tube Compress Test.This series can be used with a variety of materials testing machines to do all the tests in the paper packaging material, for a variety of paper quality testing
Ring And Edge Crush Tester for Packaging Material is used to test the compression strength of corrugated paper and kraft paper sample in vertical direction, cooperate with various accessories, And to test the vertical compressive strength of test board, bonding strength and flat compression strength.
Applicable Industry:
Paperboard Edge Crush And Ring Crush Teste Machine applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
General Specifications
Packaging Dimensions (WxDxH) 480*460*550mm
Power supply source: single-phase, 220V±10%, 50/60Hz
Gross Weight:130kg
Design Standards
TAPPI-T472, TAPPI-T808, TAPPI-T810, TAPPI-T811, TAPPI-T818, JIS-P8126, GB / T 2679.6, GB / T 6548, GB / T 2679.17.
Technical Parameters
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/100,000 |
| Precision | < 0.5% |
| Display Mode | LCD |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 80 mm |
| Pplaten Parallelism | ± 0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 570×415×730 mm |
| Weight | Approx. 48 kg |
| Power | AC220V, 1.5A |
Specifications
Cardboard Ring Crush Tester
1.Multi-fuction testing of paperboard,pasteboard
2.Can do RCT, FCT, ECT, PAT, CMT
3.Flat crush
