    Detailed Product Description
    Product Name: RoHS And Halogen-free Environmental Analyzer Sample Cavity Size: 300*300*80mm
    Element Range: S-U Measuring Scope: 1ppm-99.99%

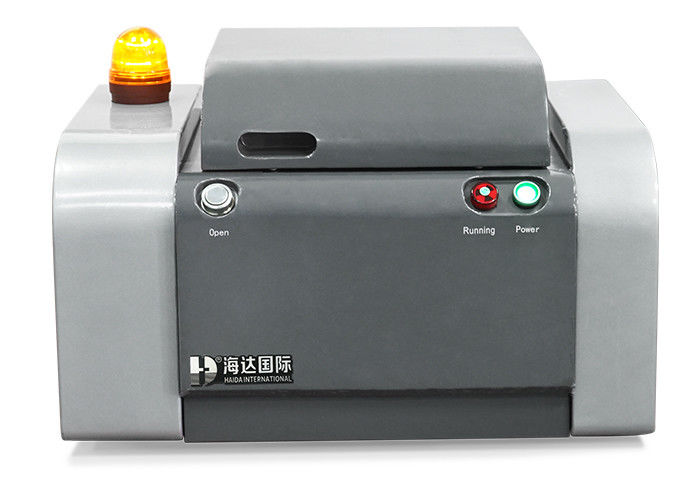

    RoHS And Halogen - Free Environmental Analyzer Optical Measuring Machine





    Machine Description

    RoHS and Halogen-free Environmental Analyzer has advantages of triple radiation protection system, humanized operation interface; comprehensive application of empirical coefficient method & fundamental parameter method V8.0 analysis software. Element measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free. Our machine with spectrum comparison function is used for real time tracing material change and warning in time. It has the incomparable advantage for RoHS/Halogen-free control.





    Application

    RoHS Directive Control Products: Household Appliance/ Information Technology and Communications Equipment / Electric Tool /Toys and other equipment.

    Halogen-free Directive Control Products: Products which use flame retardant containing Cl, Br and other elements as raw material.





    Standard Features



    Item Description
    Sample cavity size 300*300*80mm
    Element range S-U
    Measuring scope 1ppm-99.99%
    RoHS test limit Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm
    Sample type Solid, powder and liquid
    Measuring time 120-400s ( software auto adjustment )
    Collimator Φ2mm,Φ5mm
    Filter sheet 8 compound filter sheet switch automatically
    CCD observation 1.30 Million pixel HD CCD
    Sample micro scope XY8mm
    Stability Repeatability error<0.1% for multi-measurement
    Input power 1-PH, AC220V~240V,50/60Hz
    Rated power 350W
    Weight approx 48Kg
    Instrument size 640(W)x450(D)x412(H)mm






    Instrument Features

    1. Triple radiation protection system (software, hardware, Labyrinth design) protect operator from radiation harm;
    2. Adapting new design with optical path, which maximally solves negative effect of air optical path for Cl element measurement to guarantee Cl element stability;
    3. The new optimized V8.0 analysis software can auto set the ray tube power according to the sample material, shape and size. It can prolong the life time of ray tube and also fully play detector’s function and increase measurement precision greatly;
    4. Combined with series of advanced spectrum processing method including FFT, precise background deductive method, automatic peak search and Quasi-Newton optimize calculation etc;
    5. International advanced XRF analysis software which combines with several traditional analysis method such as empirical coefficient method and the fundamental parameter method (FP method), theoretical α coefficient method and so on, guarantees the precision of measuring data;
    6. Software can issue report by format Excel, PDF;

    RoHS And Halogen - Free Environmental Analyzer Optical Measuring Machine

    Software

    RoHS And Halogen - Free Environmental Analyzer Optical Measuring Machine

    RoHS And Halogen - Free Environmental Analyzer Optical Measuring Machine

    RoHS And Halogen - Free Environmental Analyzer Optical Measuring Machine
