Product Details:
|
| Product Name: | Mattress Rollator Durability Tester | Pressure Range: | 0-300KG |
|---|---|---|---|
| Maximum Force: | 1025N | Minimum Force: | 22N |
| Display Accuracy: | 0.001kgf | Power: | 380V ,2KW DC |
| High Light: | furniture testing equipment,compression testing machine |
||

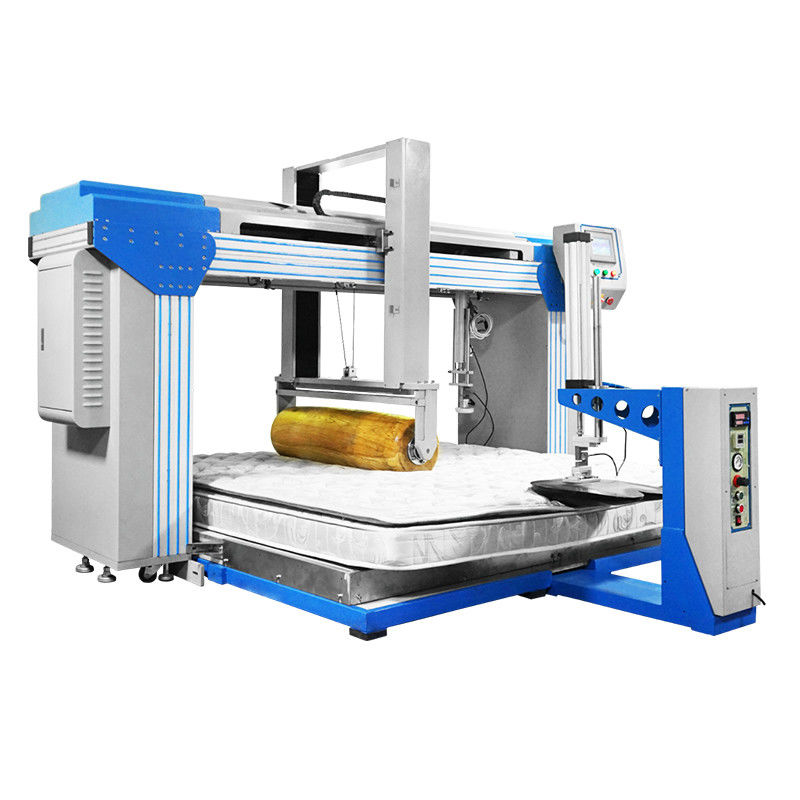

LCD Mattress Rollator Durability Tester Furniture Testing Machine
The usage
Mattress Rollator Durability Tester apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 160 cycles per minute, variable.
Specification
| pressure range | 0-300KG |
| maximum force | 1025N |
| minimum force | 22N |
| Pusher travel speed adjustable | 160 weeks times per minute |
| Suitable maximum specimen | 2.2M X 2.2M |
| Display Accuracy |
0.001kgf |
| Deformation precision | 0.001mm |
| Impact height | 0-300mm adjustable |
| Counter range | 0-99999 times |
| Power | 380V ,2KW DC |
Design Criteria:
ASTM F 1566
Specifications
Cornell Mattress Tester
1.Professional design
2.High qualiy with reasonable price
3.One year warranty free.
