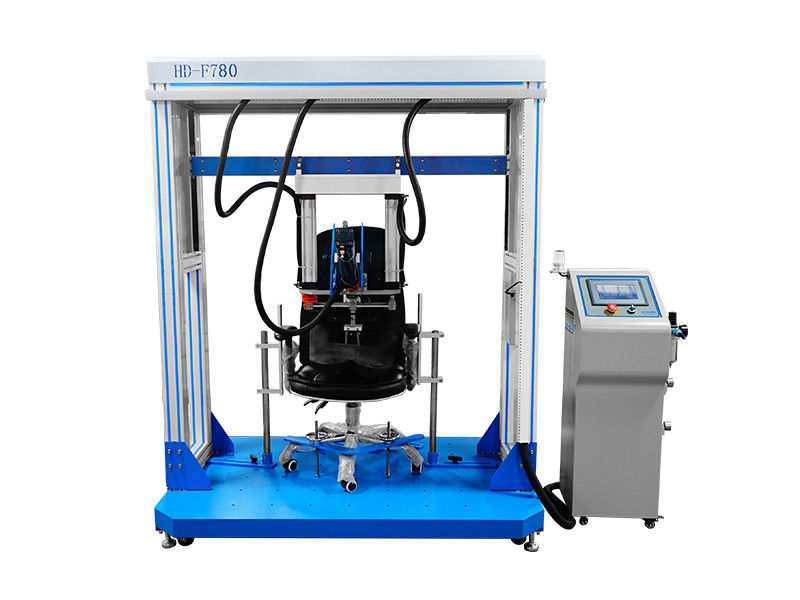

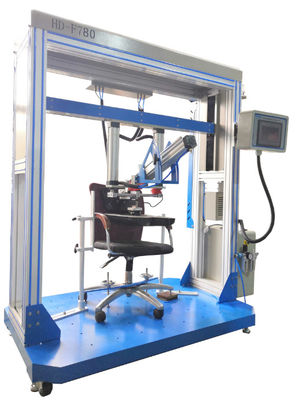

Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment

Certification
China Hai Da Labtester certification
China Hai Da Labtester certification
Customer Reviews
Yes we received the machine last week. This Machine was nice, and thank the after-sales serives, was very professional.

—— Peter Maas

The melt flow tester is working very good. The delivery was more faster than expect, your after-sales servies team memembers were nice, and the technical support was perfect.

—— Steve Hubbard

I'm Online Chat Now

Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment

Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment
Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment
Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment

Large Image :  Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-F780
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment

Description
Product Name: Chair Base Vertical Force Tester Capacity: 2000kg (Transcell Senor )
Unit Switch: Gf,kgf, N, LBf, W, KN, T Load Resolution: 1/250,000
High Light:

compression testing machine

,

fatigue testing machine

Chair Base Vertical Force Lab Testing Machine / Furniture Fatigue Testing Equipment





Product Description:


Chair Base Vertical Force Tester is used for the vertical pressure testing, destructive testing and fatigue testing of the office chair Ipomoea base (Star Base), repeated pressure loading in setting force and test cycle as the fatigue test. All holding pressure time and cycle number of tests can be adjusted.


Technical Parameter:


Capacity 2000kg (Transcell senor )
Unit switch gf,kgf, N, LBf, W, KN, T
Load resolution 1/250,000
Load accuracy within ±0.5%
Max stroke 1000mm including grip
Max sample width 1000mm
Test speed (0.01-100)mm/min (computer input)
Drive device imported servo motor
Stroke resolution 0.001 mm
Weight 452kg
Power 1 phase, AC 220V, 10A
Accessories one computer with operation software



Computer Operation:

  1. With “Windows” work platform, all parameters set by dialog, easy to operate;
  2. Software language all in English;
  3. Edit the test reports by yourself, all test parameters in main interface; Can choose time and elongation, elongation and force and others curve;
  4. With variety unit, metric system can switch;
  5. With automatic back and calibration function; with magnification function to reach suitable graph;
  6. Test speed can settable by customer;
  7. With define test method, all test parameters can analysis automatically;
  8. Get the test reports automatic and print out in A4 paper, also with curve or save in Word format.



Product Details:

chair test machine

Design Standard:

BIFMA X5.1-2011 7
