Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine

Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine
Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine

Large Image :  Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-A513-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

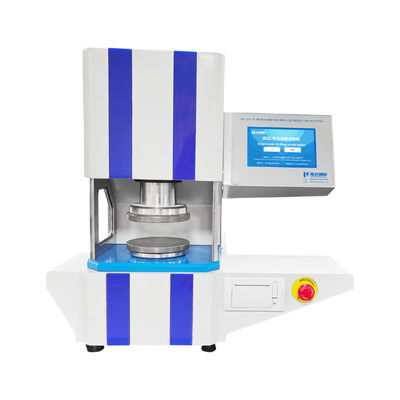

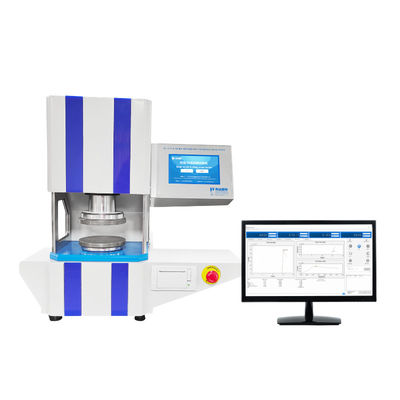

Computer Operation Paper Testing Equipment / Ring Crush And Edge Compressive Testing Machine

Description
Product Name: Ring Crush And Edge Compressive Tester Display Mode: LCD
Operation Mode: Computer Precision: < 0.25%
High Light:

paper testing machine

,

paper bursting strength tester

Ring Crush And Edge Compressive Test Machine ISTA Packaging Testing Equipment



Product Description

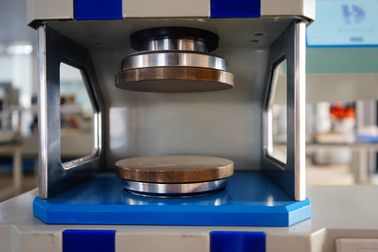

Crushing Strength Testing Machine to a certain size in the sample (corrugated paper)within a circular formation, between the upper and lower clamp pressure, can bear the most energetically before the sample is crushing

The main technical parameters are as follows

Max. Capacity 200kg

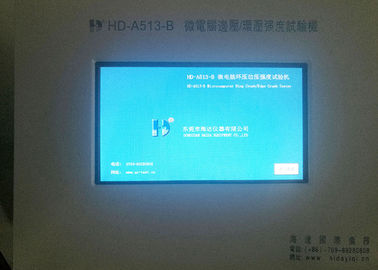

Control mode LCD display, touch screen
Load Resolution 1/100,000
Unit Kgf, Ibf, N
Load accuracy Within 0.2%
Result Output Mini-printer (thermal printer)
Test speed (10±3)mm/min
Statistics Mean value, max. & min values of the series
Power 1PH, 220V, 60HZ, 2A (customer specific)
Dimension of machine 480mm×460mm×550mm


Standards compliant:

TAPPI-T472/T808/T810/T811/T818,JIS-P8126,GBT 2679.6,GBT 2679.8,GBT2679.17
