Product Details:
|
| Product Name: | Salt Spray Test Chamber | Temperature Range: | Room Temperature ~ 55℃ |
|---|---|---|---|
| Temperature Fluctuations: | ≤±0.5℃ | Temperature Uniformity: | ≤±2℃ |
| Spraying Method: | Continuous And Periodic Spray Type | ||
| High Light: | corrosion testing equipment,salt spray test machine |
||

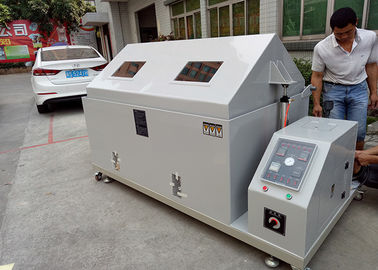

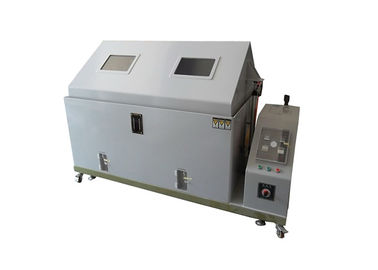

Salt Spray Corrosion Test Chamber With Temperature Control
HD-E808-160 Salt Spray Chamber.pdf
Product description
Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Standard Parameters
| Model | HD-E808-160 |
| Internal Size (W*D*H) | 1600*1000*500mm |
| External Size (W*D*H) | 2450*1250*1400mm |
| Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
| Sample tray |
Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 800L |
| Brine Tank Capacity | 40L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt / Measuring tank / Spray Nozzle x 1 set |

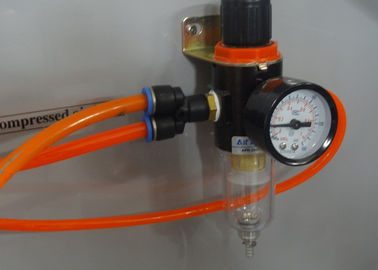

| Air source | 1HP Air pump (provided by buyer) |
| Test criteria | ASTM B117-08, ISO 9227... |
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

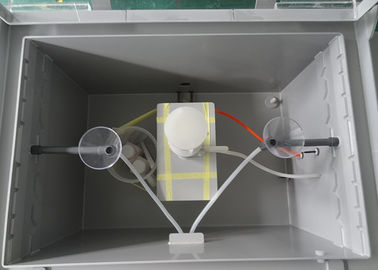

4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
